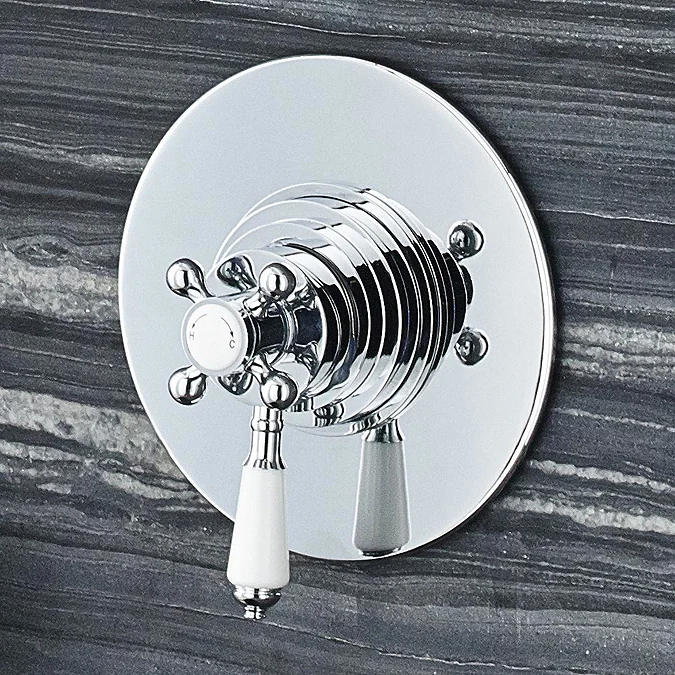

Nuie Victorian Dual Concealed Thermostatic Shower Valve – A3092C
The timeless elegance of Victorian complements the modern luxury of multi-function showering. Suitable for all types of plumbing installation this dual concealed valve has the added safety benefit of a built in anti scald device should the cold water supply fail. Additionally this valve has a safety button stop for safe showering which requires a conscious decision to override to higher temperatures.
Product Details
- Brand: Nuie
- Product Code: A3092C
- Height – 196mm
- Width – 185mm
- Depth – 146mm
- Finish: Chrome
- Valve/Cartridge Type – 1/4 Turn Ceramic Disc
- Pipe Size – 15mm (1/2″ BSP)
- Can be fitted vertically or horizontally
- Pipe Centres – 155mm
- Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down as per the relevant standard
- The patented cartridge is highly resistant to calcium build up – even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates – even at low pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn’t need re-plumbing, simply remove the cartridge turn 180° and replace
- Minimum Recommended Pressure: 0.1 bar
Flow Rate
0.1 Bar – 5.5 l/m
0.2 bar – 6.5 l/m
0.5 Bar – 14.5 l/m
1.0 Bar – 22 l/m
2.0 Bar – 30 l/m
3.0 Bar – 35 l/m
5 Year Guarantee
