Nuie Sanford Concealed 2 / 3 / 4 / Way Diverter – SANWD14
With sleek lines and modern angular design, the Sanford diverter valve is the perfect upgrade for all contemporary bathrooms. The water feed to this product will need to come via a suitable valve that has a built in on/off function (there is no on/off control with this diverter valve). These diverter valve models are operated manually, and are designed with multiple outlets which will allow up to four shower accessories to be used (only one shower accessory can be used at once as these are not designed for a “split” water flow between ports). Two blanking caps are also supplied to allow the installer to cap off any ports that are not required.
Designed for use with a Nuie Sanford thermostatic temperature control and stop tap.
Product Details
- Brand: Nuie
- Product Code: SANWD14

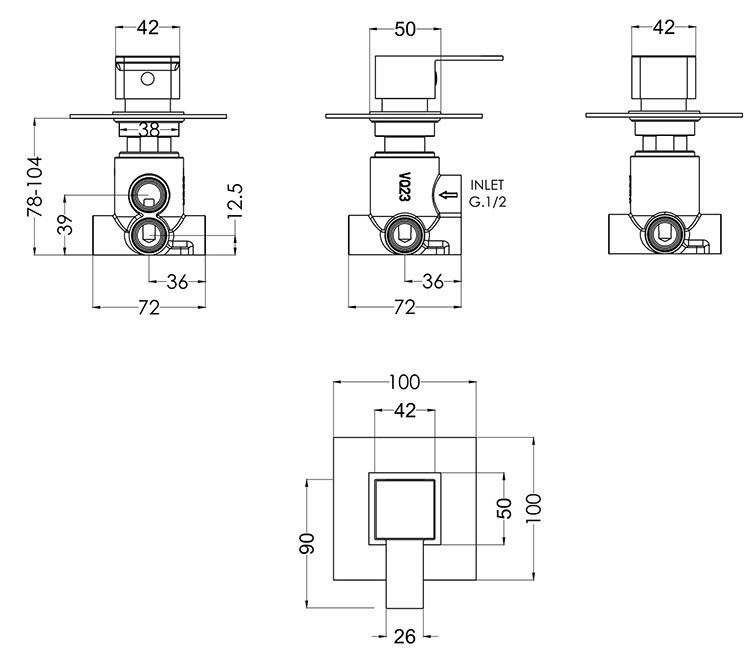

- Height: 100mm
- Width: 100mm
- Depth: 135mm
- Finish: Chrome
- Material: Brass / ABS
- Valve/Cartridge Type: 1/4 Turn Ceramic Disc
- Pipe Size: 15 mm (1/2″ BSP)
- Concealed diverter valve
- Operating Pressure: 0.2 bar
All measurements are approximate
Guarantee: 5 Year
Flow Rates
0.1 Bar – 5.2 l/m
0.2 Bar – 8.5 l/m
0.5 Bar – 13.3 l/m
1 Bar – 19.1 l/m
2 Bar – 27 l/m
3 Bar – 33.2 l/m
