Features & Benefits
- Minimalist sleek design
- Can be fitted vertically or horizontally
- Accurate flow control
- Thermostatic control to +/- 2 to 3 °C even if the water pressure fluctuates
- In the event of hot or cold water failure, the valve will shut down the water supply providing full thermal protection and prevents scalding
- The unique cartridge is highly resistant to calcium build up – even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates – even at low pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn’t need re-plumbing
- Simply remove the cartridge turn 180° and replace
- Manufactured from high quality brass & ABS
Details

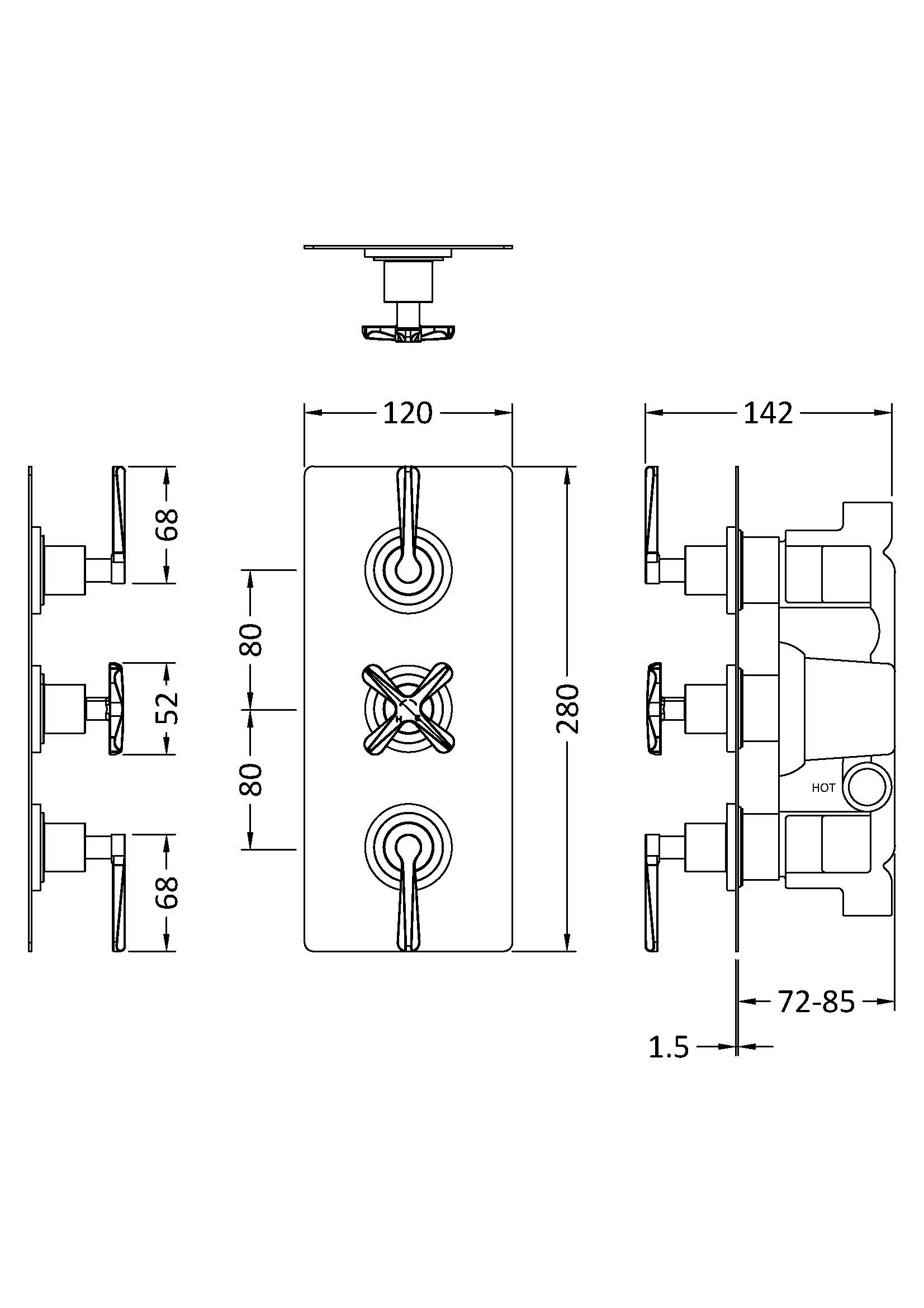

Dimensions & Capacity
Product Depth: 136 mm
Product Height: 280 mm
Product Width: 120 mm
Design & Materials
Colour: Matt Black
Number of Handles: 3
Product Material: Brass Abs
Shower Valve Style Shape: Rectangular
Valve Handle Type/Shape: Rectangular
Features & Benefits
Stain Rust Resistant: Yes
Installation & Compatibility
Assembly Required: No
What’s Included
Cartridge Included: Yes
Handset Included: No
Head Included: No
Outlet Elbow Included: No
Valve Included: Yes
Technical Specifications
Control Type: Manual
Flow Rate 0.1Bar l/m: 5.5000
Flow Rate 0.2Bar 1/m: 7.1000
Flow Rate 0.5Bar l/m: 14.0000
Flow Rate 1Bar l/m: 20.0000
Flow Rate 2Bar l/m: 29.0000
Flow Rate 3Bar l/m: 44.0000
Handle Type: Crosshead/Lever
Mount Type: Recessed/Wall
Operating Pressure: 0.1 Bar
Valve Mount Type: Concealed Shower
Valve/Cartridge Type :1/4 Turn
Compliance & Warranty
Guarantee no. of years: 3 Years
TMV2 Approved :No
TMV3 Approved: No
WRAS Approval Number
250602040
WRAS Approved
Yes
